Invoice or Credit Memo Inbound from Supplier - cXML Specification

Alex Varchenko
  • Updated

This topic provides an overview of the cXML inbound Invoices and provides cXML specifications for integration with BuyerQuest.



Inbound Invoices and Credit Memos in cXML

When a cXML Invoice or Credit Memo is received, the Purchase Order number is compared against all BuyerQuest and ERP Purchase Order numbers in the system. When there is a match an Invoice or Credit Memo is created against the matching Purchase Order. When there is no match an error message is generated.

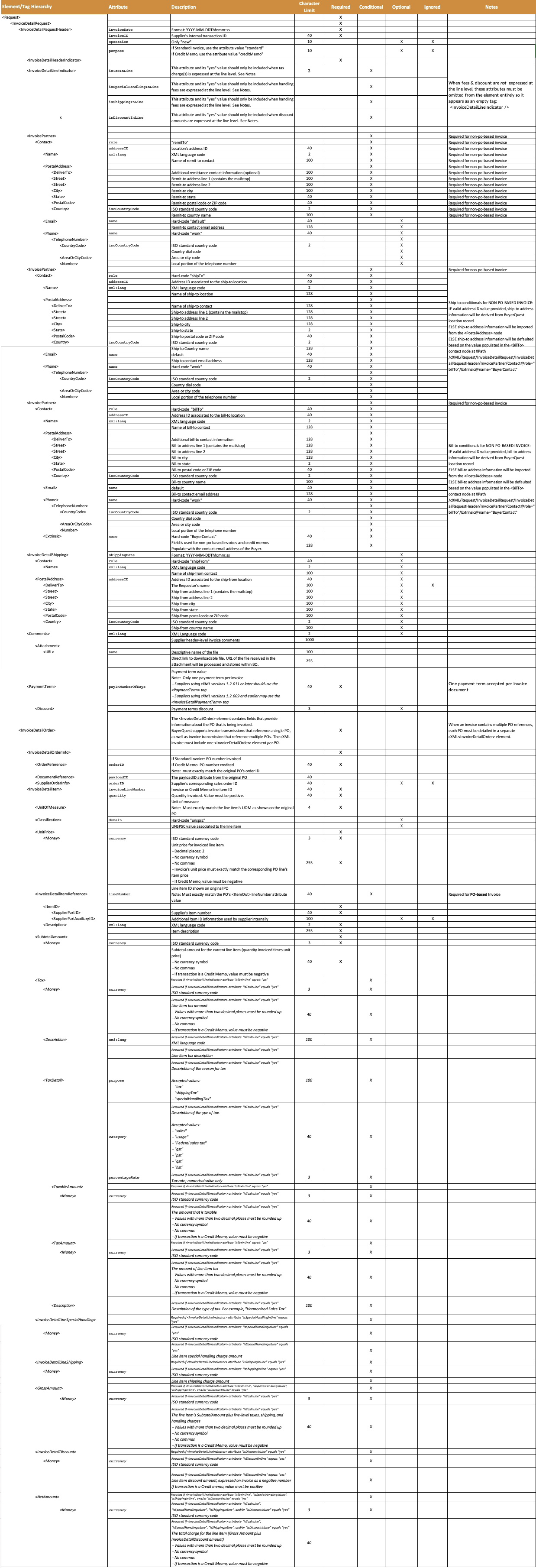

Invoice/Credit Memo cXML Specification

The excel version of the specification is included here:

InboundInvoiceCMcXML11.8.xlsx



Invoice and Credit Memo cXML Sections

The BuyerQuest Inbound Invoice and Credit Memo cXML is broken into the following sections. Each section contains a series of tags shown in brackets, which provide detailed information.

  • Transaction Header
  • Request
  • Summary

Each of these sections is described in further detail below.

Note that comments can be added by the Supplier to a cXML Invoice and will be displayed on an Invoice detail page.



Invoice Specifications

An Invoice cXML message broadly consists of three important elements: Invoice Transaction Header, Invoice Request and Invoice Summary. These elements are described in further detail below.

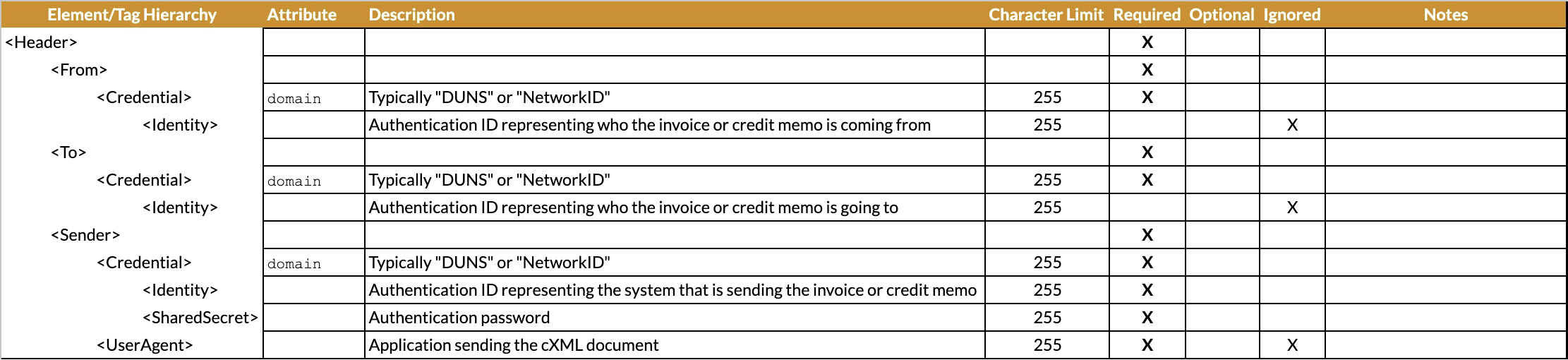

Inbound Invoice Transaction Header

The invoice Transaction Header contains authentication and addressing information. Specific user information should not be included in the header, as it is not relevant to addressing or authentication.



Inbound Invoice Request

The Invoice Request Message follows the Header and contains a sub-heading that includes order-specific information, such as an order identification number or date.

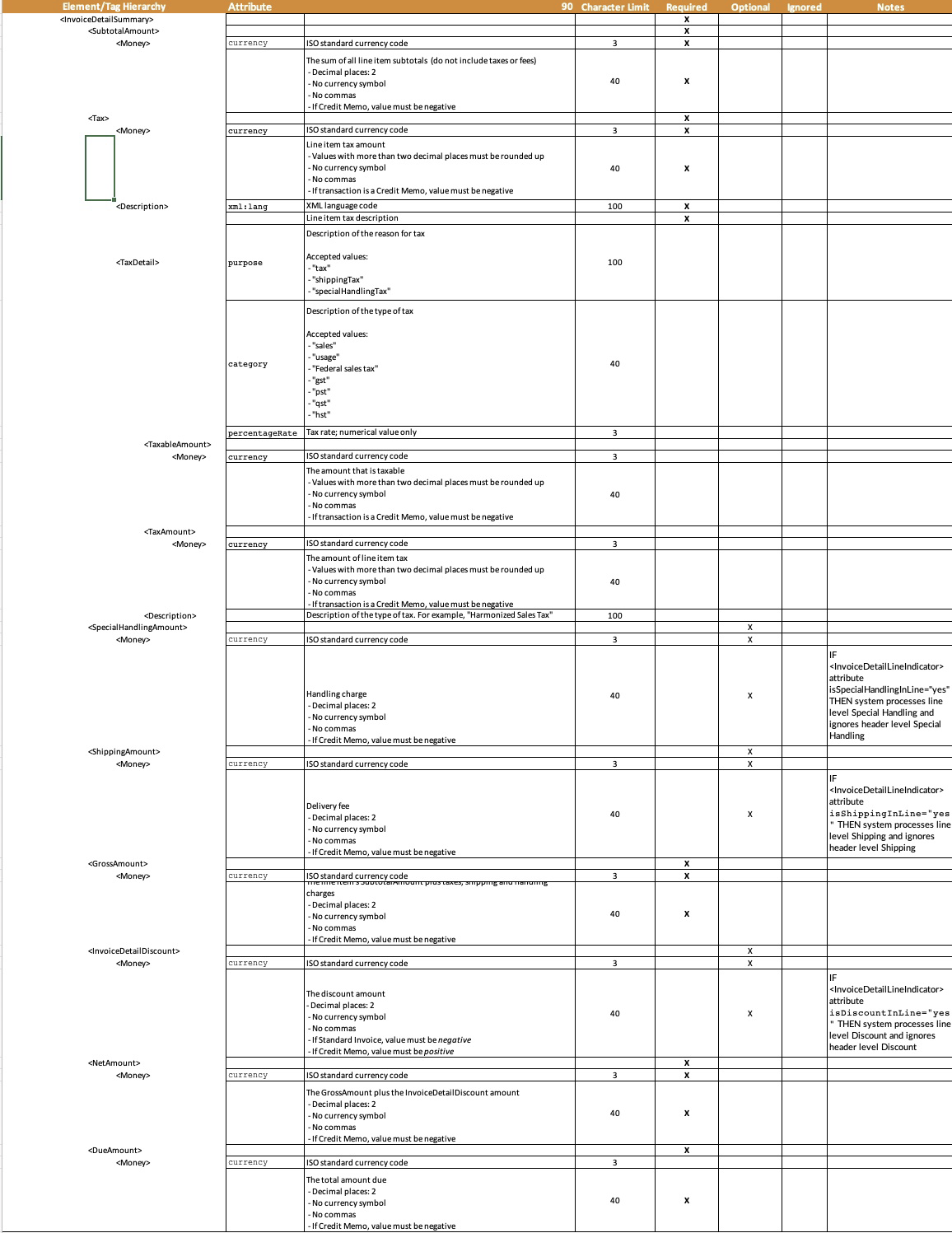

Inbound Invoice Summary

The Invoice Summary section contains summary data for the invoice totals.



Invoice cXML Example

To show ‘Misc’ value in the Invoice <InvoiceHeaderModifications> tag is used.

  • IF <InvoiceHeaderModifications> is provided in <InvoiceDetailSummary> THEN
  • IF <ModificationDetail> is provided with name = "Misc" THEN
    • The System sets in created Invoice:
    • Header Misc = value provided in <AdditionalCost><Money>
    • ELSE <ModificationDetail> tag is skipped
  • ELSE the system ignores the <InvoiceHeaderModifications> tag

Note: If there are several Misc in the file, the System takes the first provided

<Modification> with <ModificationDetail> in <InvoiceHeaderModifications>



Markup Copy

<?xml version="1.0"?>

<!DOCTYPE cXML SYSTEM

"http://xml.cXML.org/schemas/cXML/1.2.021/InvoiceDetail.dtd">

<cXML payloadID="1442348263.76879@ip-" xml:lang="en-US"

timestamp="2019-07-09T15:30:55.5757633Z">

<Header>

<From>

<Credential domain="DUNS">

<Identity>123456987</Identity>

</Credential>

</From>

<To>

<Credential domain="NetworkID">

<Identity>4Hkj3zR9tV</Identity>

</Credential>

</To>

<Sender>

<Credential domain="DUNS">

<Identity>796258564</Identity>

<SharedSecret>b8s7w9j50djg493jsgh</SharedSecret>

</Credential>

<UserAgent>Supplier System</UserAgent>

</Sender>

</Header>

<Request>

<InvoiceDetailRequest>

<InvoiceDetailRequestHeader invoiceID="4686315499"

purpose="standard" operation="new" invoiceDate="2019-07-

09T15:30:55.5757633Z">

<InvoiceDetailHeaderIndicator/>

<InvoiceDetailLineIndicator isTaxInLine="yes"/>

<InvoicePartner>

<Contact role="remitTo" addressID="123_4567">

Markup Copy

Page: 694 of 1911

<Name xml:lang="en-US">Accounts Payable</Name>

<PostalAddress>

<Street>123 Penny Lane</Street>

<Street>Suite 684</Street>

<City>Ypsilanti</City>

<State>MI</State>

<PostalCode>48198</PostalCode>

<Country isoCountryCode="US">United

States</Country>

</PostalAddress>

</Contact>

</InvoicePartner>

<InvoicePartner>

<Contact role="shipTo" addressID="20500">

<Name xml:lang="en_US">Business Inc</Name>

<PostalAddress>

<DeliverTo>Bob Buyer</DeliverTo>

<Street>999 Park Blvd</Street>

<Street>Room 343</Street>

<City>Wooster</City>

<State>OH</State>

<PostalCode>44691</PostalCode>

<Country isoCountryCode="US">United

States</Country>

</PostalAddress>

<Email name="default">bob@example.com</Email>

<Phone name="work">

<TelephoneNumber>

<CountryCode

isoCountryCode="US">1</CountryCode>

<AreaOrCityCode>330</AreaOrCityCode>

<Number>555-1234</Number>

</TelephoneNumber>

</Phone>

</Contact>

</InvoicePartner>

<InvoicePartner>

<Contact role="billTo">

<Name xml:lang="en_US">Business Inc</Name>

<PostalAddress>

<DeliverTo>Accounts Payable</DeliverTo>

<Street>P.O. Box 23426</Street>

<City>Wooster</City>

<State>OH</State>

<PostalCode>44691</PostalCode>

Page: 695 of 1911

<Country isoCountryCode="US">United

States</Country>

</PostalAddress>

<Email name="default">AP@example.com</Email>

<Phone name="work">

<TelephoneNumber>

<CountryCode

isoCountryCode="US">1</CountryCode>

<AreaOrCityCode>330</AreaOrCityCode>

<Number>555-1234</Number>

</TelephoneNumber>

</Phone>

<Extrinsic

name="BuyerContact">bob@example.com</Extrinsic>

</Contact>

</InvoicePartner>

<InvoiceDetailShipping shippingDate="2019-07-

22T13:19:49">

<Contact role="shipFrom">

<Name xml:lang="en-US">Acme Logistics,

LLC</Name>

</Contact>

</InvoiceDetailShipping>

<Comments>This is the header-level comment on the

invoice.</Comments>

<PaymentTerm payInNumberOfDays="30"/>

</InvoiceDetailRequestHeader>

<InvoiceDetailOrder>

<InvoiceDetailOrderInfo>

<OrderReference orderID="PO-987654"/>

<DocumentReference payloadID="1507128668.37307@ip-

127-0-0-1"/>

<SupplierOrderInfo orderID="S4646589104"/>

</InvoiceDetailOrderInfo>

<InvoiceDetailItem invoiceLineNumber="1" quantity="1">

<UnitOfMeasure>EA</UnitOfMeasure>

<UnitPrice>

<Money currency="USD">31.12</Money>

</UnitPrice>

<InvoiceDetailItemReference lineNumber="4">

<ItemID>

<SupplierPartID>36-3501-X4</SupplierPartID>

<SupplierPartAuxiliaryID>00012345678905</SupplierPartAuxiliaryID>

</ItemID>

Page: 696 of 1911

<Description xml:lang="en-US">Wireless

Keyboard/Mouse Kit</Description>

</InvoiceDetailItemReference>

<SubtotalAmount>

<Money currency="USD">31.12</Money>

</SubtotalAmount>

<Tax>

<Money currency="USD">2.02</Money>

<Description xml:lang="en-US">Sales

Tax</Description>

<TaxDetail purpose="tax" category="sales"

percentageRate="6.5000">

<TaxableAmount>

<Money currency="USD">31.12</Money>

</TaxableAmount>

<TaxAmount>

<Money currency="USD">2.02</Money>

</TaxAmount>

<Description>Michigan sales tax</Description>

</TaxDetail>

</Tax>

<GrossAmount>

<Money currency="USD">33.14</Money>

</GrossAmount>

<NetAmount>

<Money currency="USD">33.14</Money>

</NetAmount>

</InvoiceDetailItem>

</InvoiceDetailOrder>

<InvoiceDetailSummary>

<SubtotalAmount>

<Money currency="USD">31.12</Money>

</SubtotalAmount>

<Tax>

<Money currency="USD">2.35</Money>

<Description xml:lang="en-US">Sales and Use

Tax</Description>

<TaxDetail purpose="tax" category="sales"

percentageRate="6.5000">

<TaxableAmount>

<Money currency="USD">31.12</Money>

</TaxableAmount>

<TaxAmount>

<Money currency="USD">2.02</Money>

</TaxAmount>

Page: 697 of 1911

Credit Memo cXML Example

Incoming Credit Memo Requirements

<Description>Michigan sales tax</Description>

</TaxDetail>

</Tax>

<SpecialHandlingAmount>

<Money currency="USD">0.00</Money>

</SpecialHandlingAmount>

<ShippingAmount>

<Money currency="USD">5.00</Money>

</ShippingAmount>

<GrossAmount>

<Money currency="USD">38.47</Money>

</GrossAmount>

<InvoiceDetailDiscount>

<Money currency="USD">-0.50</Money>

</InvoiceDetailDiscount>

<NetAmount>

<Money currency="USD">37.97</Money>

</NetAmount>

<DueAmount>

<Money currency="USD">37.97</Money>

</DueAmount>

<InvoiceHeaderModifications>

<Modification>

<AdditionalCost>

<Money currency = "USD">10</Money>

</AdditionalCost>

<ModificationDetail name = "Misc"/>

</Modification>

</InvoiceHeaderModifications>

</InvoiceDetailSummary>

</InvoiceDetailRequest>

</Request>

</cXML>



Credit Memo cXML Example

Incoming Credit Memo Requirements

All amounts specified in the element <Money currency="{Currency Code}"> {Amount}</Money> should be negative, with the exception of <Discount>. If any amount specified is not negative, an error is generated



The Purchase Order ID in an incoming Credit Memo cXML is verified to determine that it exists in the system for the supplier creating the Credit Memo. If it does not exist, the Credit Memo is not created and an error is generated.



Markup Copy

<?xml version="1.0" encoding="utf-8"?>

<!DOCTYPE cXML SYSTEM

"http://xml.cXML.org/schemas/cXML/1.2.011/InvoiceDetail.dtd">

<cXML version="1.2.011"

payloadID="0987654321.cXML.123456789.wRMTWDOLe5cf2dk9@example.com"

timestamp="2016-04-13T02:10:27-05:00" xml:lang="en-US">

<Header>

<From>

<Credential domain="NetworkID">

<Identity>suppplier123</Identity>

</Credential>

</From>

<To>

<Credential domain="NetworkID">

<Identity>Business8765</Identity>

</Credential>

</To>

<Sender>

<Credential domain="NetworkID">

<Identity>supplier123</Identity>

<SharedSecret>abc-p123-def-333-ghi-7878</SharedSecret>

</Credential>

<UserAgent>Supplier's Application</UserAgent>

</Sender>

</Header>

<Request deploymentMode="production">

<InvoiceDetailRequest>

<InvoiceDetailRequestHeader invoiceID="5465351684354"

purpose="creditMemo" operation="new" invoiceDate="2017-11-

15T12:00:00-05:00">

<InvoiceDetailHeaderIndicator/>

<InvoiceDetailLineIndicator/>

<InvoicePartner>

<Contact role="remitTo">

Markup Copy

Page: 699 of 1911

<Name xml:lang="en-US">Accounts Payable</Name>

<PostalAddress>

<Street>123 Main Rd</Street>

<Street>Suite 208C</Street>

<City>San Jose</City>

<State>CA</State>

<PostalCode>94304</PostalCode>

<Country isoCountryCode="US">US</Country>

</PostalAddress>

</Contact>

</InvoicePartner>

<InvoicePartner>

<Contact role="billTo">

<Name xml:lang="en-US">Business Company, Inc.

</Name>

<Email xml:lang="en-

US">werner@example.com</Email>

<PostalAddress>

<Street>Einestraße 12345</Street>

<City>Heidelberg</City>

<State>BW</State>

<PostalCode>69121</PostalCode>

<Country

isoCountryCode="DE">Germany</Country>

</PostalAddress>

</Contact>

</InvoicePartner>

<InvoiceDetailShipping>

<Contact role="shipFrom">

<Name xml:lang="en-US">Vendor Inc. dba Acme

LLC</Name>

<PostalAddress>

<Street>123 Main Rd, Warehouse 5</Street>

<City>San Jose</City>

<State>CA</State>

<PostalCode>94304</PostalCode>

<Country isoCountryCode="US">US</Country>

</PostalAddress>

</Contact>

</InvoiceDetailShipping>

<PaymentTerm payInNumberOfDays="45"/>

</InvoiceDetailRequestHeader>

<InvoiceDetailOrder>

<InvoiceDetailOrderInfo>

<OrderReference orderID="PO-02768"

Page: 700 of 1911

orderDate="2017-11-15">

<DocumentReference payloadID="12121212@ip-

XXXXXXXX"/>

</OrderReference>

<SupplierOrderInfo orderID="6950"/>

</InvoiceDetailOrderInfo>

<InvoiceDetailItem invoiceLineNumber="1"

quantity="10">

<UnitOfMeasure>PK</UnitOfMeasure>

<UnitPrice>

<Money currency="EUR">-21.18</Money>

</UnitPrice>

<InvoiceDetailItemReference lineNumber="4">

<ItemID>

<SupplierPartID>AB123C-88776</SupplierPartID>

</ItemID>

<Description xml:lang="en-US">Legal Pad 8-1/2

x 11-3/4 Inches, Perforated, White Legal/Wide Rule, 80 Sheets per

Pad, 10 Pads per Pack</Description>

</InvoiceDetailItemReference>

<Extrinsic name="UNSPSC">14111514</Extrinsic>

<SubtotalAmount>

<Money currency="EUR">-211.80</Money>

</SubtotalAmount>

<Tax>

<Money currency="EUR">0</Money>

<TaxDetail purpose="tax" category="vat"

percentageRate="0" taxPointDate="2014-09-16T00:00:00+00:00">

<TaxableAmount>

<Money currency="EUR">0</Money>

</TaxableAmount>

<TaxAmount>

<Money currency="EUR">0</Money>

</TaxAmount>

<TaxLocation xml:lang="en">US</TaxLocation>

</TaxDetail>

</Tax>

</InvoiceDetailItem>

</InvoiceDetailOrder>

<InvoiceDetailSummary>

<SubtotalAmount>

<Money currency="EUR">-211.80</Money>

</SubtotalAmount>

<Tax>

<Money currency="EUR">0.00</Money>

Page: 701 of 1911

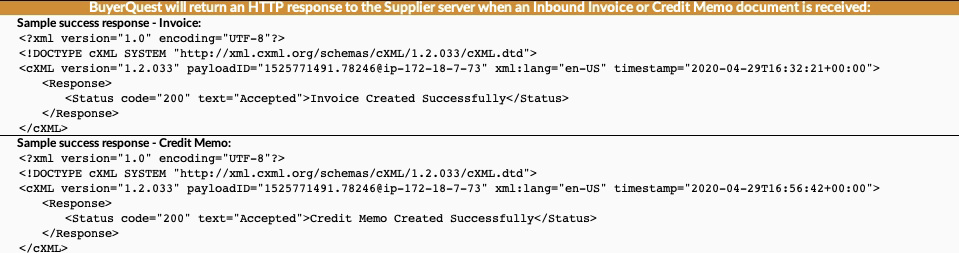

BuyerQuest HTTP Response to Invoice or Credit Memo

Next Steps

Please prepare to provide the following required information upon request:

1. Supplier contact's information for setup and testing

2. Sample cXML invoice based off the order you received during PO testing

BuyerQuest will supply the following required information:

1. URL the supplier will use to post their test cXML invoices

<Description xml:lang="en-US">Tax</Description>

<TaxDetail purpose="tax" category="sales">

<TaxAmount>

<Money currency="EUR">0.00</Money>

</TaxAmount>

</TaxDetail>

</Tax>

<ShippingAmount>

<Money currency="EUR">0.00</Money>

</ShippingAmount>

<GrossAmount>

<Money currency="EUR">-211.80</Money>

</GrossAmount>

<InvoiceDetailDiscount>

<Money currency="EUR">10.00</Money>

</InvoiceDetailDiscount>

<NetAmount>

<Money currency="EUR">-201.80</Money>

</NetAmount>

</InvoiceDetailSummary>

</InvoiceDetailRequest>

</Request>

</cXML>



BuyerQuest HTTP Response to Invoice or Credit Memo



Next Steps

Please prepare to provide the following required information upon request:

  1. Supplier contact's information for setup and testing
  2. Sample cXML invoice based off the order you received during PO testing

BuyerQuest will supply the following required information:

  1. URL the supplier will use to post their test cXML invoices
  2. URL the supplier will use to post their production cXML invoices

Related articles

Comments

0 comments

Article is closed for comments.
