Punchout To Supplier cXML - Punchout Setup Request (POSR) and Punchout Order Message (POOM)

Permanently deleted user
  • Updated

This topic details the data elements for cXML Punchout Setup Requests (POSR) and Punchout Order Messages (POOM) to and from suppliers.



Punchout to Supplier - cXML (POSR)

The Punchout Setup Request (POSR) is detailed below and specifies element name, location, and sample value.

Element Element Location Is Configurable Sample Element Value



<From>

<Credential domain="">

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the From Credential Domain field





Yes





NetworkId



<From>

<Identity>{Element Value}</Identity>

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the From ID field





Yes





MCDPUNCHOUT





<To>      <Credential domain="">

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the To Credential Domain field





Yes





NetworkId



<To>        <Identity>

{Element Value}

</Identity>

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the To ID field





Yes





154484505

<Sender>

<Credential domain="">

   No (System Generated)



NetworkId



<Sender>

<Identity>{Element Value}</Identity>

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the Sender ID field





Yes





MCDPUNCHOUT

<Sender>

<SharedSecret>

{Element Value}

</SharedSecret>

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the SharedSecret field





Yes





RRD2500

<Sender>

<UserAgent>

{Element Value}

</UserAgent>





No (System Generated)



<PunchOutSetupRequest operation="

{Element Value}">

   No (System Generated)

<PunchOutSetupRequest operation="create">

<BuyerCookie>

{Element Value}

</BuyerCookie>







No (System Generated)





l8vjqubjj7abohgk6nlv3p8b83



<PunchOutSetupReq uest operation="

{Element Value}">

 Navigate to Menu > Suppliers > Manage Punchout Connections > Edit a Connection (or create new) > Allow Cart Edit





Yes





Edit

<ItemOut quantity="2">

<ItemID>

<SupplierPartID>220-6338</SupplierPartID>

<SupplierPartAuxiliaryID>

E000028901

</SupplierPartAuxiliaryID>

</ItemID>













No (System Generated)







For each item that was edited this element is added under 'SupplierSet up' element.The 'Quantity', 'ItemID', 'SupplierPartID', and 'SupplierPartAuxiliaryID' fields are also sent as shown

<PunchOutSetupRequest operation="create">

<Extrinsic name="

{Element Value}">

</Extrinsic>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Extrinsic section for the appropriate Element/Element Value.







Yes







UserEmail



<PunchOutSetupRequest operation="create">

<Extrinsic name="

{Element Value}"/>

Navigate to Menu > Suppliers

  • Punchout Connections
  • POSR Configuration and add/edit the Extrinsic section for the

appropriate Element/Element Value.







Yes







UserId



<PunchOutSetupRequest operation="create">

<Extrinsic name="

{Element Value}"/>

Navigate to Menu > Suppliers

  • Punchout Connections
  • POSR Configuration and add/edit the Extrinsic section for the

appropriate Element/Element Value.







Yes







UniqueName



<PunchOutSetupRequest operation="create">

<Extrinsic name="

{Element Value}"/>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Extrinsics section for the appropriate Element/Element Value.







Yes







OperatingUnit

<PunchOutSetupRequest operation="create">

<BrowserFormPost>

<URL>{Element Value}</URL>







No (System Generated)





https://uat.buyerquest.net/ middlemarch/punchoutclient/transactions/ cxmlresponse/

<PunchOutSetupReq uest

operation="">

<Contact>

<Name xml:lang="en- US">{Element Value}

</Name>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Contact section for the appropriate Element/Element Value.







Yes







ADMINISTRATOR SUPERUSER

<PunchOutSetupRequest

operation="">

<Contact>

<Email>{Element Value}</Email>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Contact section for the appropriate Element/Element Value.







Yes







administrator@buyerquest.com

<PunchOutSetupRequest

operation="">

<SupplierSetup>

<URL>{Element Value}</URL>

 Navigate to Menu > Suppliers > Punchout Connections > Connections Information and add/update the Start Url field





Yes



https://testcustompoint.rrd.com/xs2/ orders/punchout? eventID=EVT_ARIBA_CXML_REQ

<PunchOutSetupRequest operation="">

<ShipTo>

<Address addressID="{Element Value}">

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







100000

<ShipTo>

<Address addressID="100000">

<Name xml:lang="en">

{Element Value}

</Name>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







Global Headquarters

<ShipTo>

<Address addressID="100000">



<PostalAddress>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes



<ShipTo>

<Address addressID="100000">

<DeliverTo>

{Element Value}

</DeliverTo>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes



<ShipTo>

<Address addressID="100000">

<Street>

{Element Value}

</Street>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







343 West Bagley Road

<ShipTo>

<Address addressID="100000">

<DeliverTo/>

<City>{Element Value}</City>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







Cleveland

<ShipTo>

<Address addressID="100000">

<DeliverTo/>

<State>

{Element Value}

</State>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







OH

<ShipTo>

<Address addressID="100000">

<DeliverTo/>

<PostalCode>

{Element Value}

</PostalCode>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.







Yes







44017

<ShipTo>

<Address addressID="">

<DeliverTo/>

<Country isoCountryCode="

{Element Value}">

</Country>

 Navigate to Menu > Suppliers > Punchout Connections > POSR Configuration and add/edit the Ship To section for the appropriate Element/Element Value.









Yes



The Punchout Order Message (POOM) contains the shopping cart content that was created on the supplier PunchOut catalog site and consists of the Header and Message.



Punchout Setup Request (POSR) Sample

Markup Copy

<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE    cXML    SYSTEM    "http://xml.cxml.org/schemas/cXML/1.1.007/cXML.dtd">

<cXML version="1.1.007" xml:lang="en-US" payloadID="20120430080911.362825875.5652@opprod.aafes.com"  timestamp="2012-04-30T08:09:11-06:00">

<Header>

<From>

<Credential domain="NetworkID">

<Identity>3590j9887b01D2</Identity>

</Credential>

</From>

<To>

<Credential domain="NetworkID">

<Identity>BQ7617F45</Identity>

</Credential>

</To>

<Sender>

<Credential domain="NetworkID">

<Identity>3590j9887b01D2</Identity>

<SharedSecret>984J88re410m0</SharedSecret>

</Credential>

<UserAgent>GatewayTest</UserAgent>

</Sender>

</Header>

<Request>

<PunchOutSetupRequest operation="create">

<BuyerCookie>6j91k8834p01213km874930902</BuyerCookie>

<Extrinsic name="User">Y253690</Extrinsic>

<BrowserFormPost>

<URL>https://buyerquest.net/gate/index.php/admin/testconn/response/</URL>

</BrowserFormPost>

</PunchOutSetupRequest>

</Request>

</cXML>

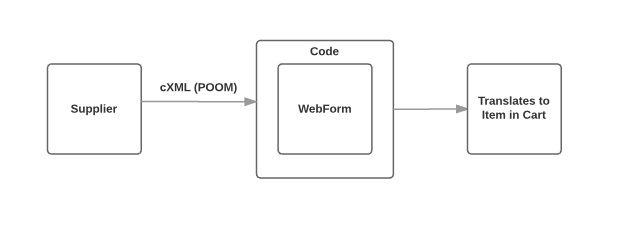

Flow Diagram for Punchout Order Message (POOM)

The diagram included here shows the process of how the supplier cXML Punchout O rder Message (POOM) is translated to items in a user's cart.

For the following process to complete successfully, the Punchout WebClient cXML Web Form must be enabled and set up to accept/map the proper elements and element values that are passed in the Punchout Order Message (POOM).

Elements and Values in the Punchout Order Message

Element Element Notes Sample Element Value
<From>      <Credential domain=""> This comes from the Punchout Setup Request (POSR) NetworkId

<From>        <Identity>{Element Value}

</Identity>

 This comes from the POSR 1234567
<To>      <Credential domain=""> This comes from the POSR NetworkId

<To>        <Identity>{Element Value}

</Identity>

 This comes from the POSR MCDPUNCHOUT
<Sender>      <Credential domain="">   DUNS

<Sender>        <Identity>{Element Value}

</Identity>

 This comes from the POSR 1234567
<Sender>      <UserAgent>{Element Value}</UserAgent>   @winXS 2.0
<Message deploymentMode="{Element Value}" inReplyTo="{Element Value}"> System Generated "test" "123456.6789@buyerquest.net"

<BuyerCookie>{Element Value}

</BuyerCookie>

 System Generated 123abc
<PunchOutOrderMessageHeader operation Allowed="{Element Value}"> No (System Generated) edit

<PunchOutOrderMessageHeader operation Allowed="create">      <Total>

<Money currency="USD">{Element Value}

</Money>

Code: Money Type: Product Attribute: List Price

Code: currency Type: Text



-500.00
<ItemIn quantity="{Element Value}"> Code: Quantity Type: Quantity4Cart 1
<ItemID> <SupplierPartID>{Element Value}</SupplierPartID>

Code: SupplierPartID

Type: Product Attribute: SKU

 2031449A

<SupplierPartAuxiliaryID>{Element Value}

</SupplierPartAuxiliaryID>

 Code: SupplierPartAuxiliaryID Type: Text X5477050001

<ItemDetail>

<UnitPrice>

<Money currency="{Element Value}">{Element Value}</Money>

</UnitPrice>



Code: Money Type: Product Attribute: List Price

Code: currency Type: Text





USD -500.00

<ItemDetail>

<Description xml:lang="{Element Value}">{Element Value}</Description>

Code: xml:lang Type: Text Code: Description

Type: Product Attribute: Short Description



"en"

X5477050001 ARK ANIMALS
<ItemDetail> <UnitOfMeasure>{Element Value} </UnitOfMeasure> Code: Unit of Measure Type: Text CT

<ItemDetail>    <Classification domain="UNSPSC">{Element Value}

</Classification>

 Code: Classification Type: Product Attribute: UNSPSC



55121613



Web Form Fields Configured to be Included in the Punchout Order Message

Web Form fields may be configured to have data included in the Cart Transfer.

When there is a Web Form item in the Cart when the Cart Transfer is submitted, Web Form fields configured to be included are sent as extrinsics.

The configuration to include the data is available in the Web Form Setup by selecting Yes for Send Field Data to ERP in Cart Transfer.

An example of a Web Form Field sent as an extrinsic is as follows:

<input type="hidden" name="NEW_ITEM-BASE_CAPACITY[1]" value="4000 mAh">

Note: Some standard fields from Web Forms are sent by default as non-extrinsics. They include Qty, Price, and SKU.



Punchout Order Message (POOM) Sample

Markup Copy

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE    cXML    SYSTEM    "http://xml.cxml.org/schemas/cXML/1.2.035/cXML.dtd">

<cXML   payloadID="1547054530"   timestamp="2019-01-09T12:22:10-05:00"   xml:lang="en-US">

<Header>

<From>

<Credential domain="NetworkID">

<Identity>BQ7617F45</Identity>

</Credential>

</From>

<To>

<Credential domain="NetworkId">

<Identity>3590j9887b01D2</Identity>

</Credential>

</To>

<Sender>

<Credential domain="buyerquest.net">

<Identity>BuyerQuest Gateway</Identity>

</Credential>

<UserAgent>cXML  Gateway</UserAgent>

</Sender>

</Header>

<Message>

<PunchOutOrderMessage>

<BuyerCookie>6j91k8834p01213km874930902</BuyerCookie>

<PunchOutOrderMessageHeader operationAllowed="create">

<Total>

<Money currency="USD">55800.00000</Money>

</Total>

</PunchOutOrderMessageHeader>

<ItemIn quantity="100.0000">

<ItemID>

<SupplierPartID>AE-3388CF</SupplierPartID>

</ItemID>

<ItemDetail>

<UnitPrice>

<Money currency="USD">320.00000</Money>

</UnitPrice>

<Description xml:lang="en">CARBON FIBER HEADSET WITH PUSH TO TALK (PTT) SWITCH IN EAR CUP WITH 26' COIL CORD<ShortName>CARBON FIBER HEADSET WITH PTT AND COIL CORD</ShortName>

</Description>

<UnitOfMeasure>EA</UnitOfMeasure>

<Classification domain="UNSPSC">25191500</Classification>

<ManufacturerPartID>AE-3388CF</ManufacturerPartID>

<ManufacturerName>Airelectric Inc.</ManufacturerName>

<LeadTime>3</LeadTime>

</ItemDetail>

<SupplierID domain="buyersystemid">6ty891q430999</SupplierID>

<Comments/>

</ItemIn>

</PunchOutOrderMessage>

</Message>

</cXML>
